Model No：KFL6015

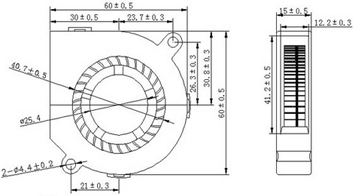

Measure：60*60*15 mm
Feature：
．Housing: enviromental protection and fireproof PBT（UL94V-0）.
．Impeller: enviromental protection and fireproof PBT（UL94V-0）.
．Enameled copper wire: B class insulation,withstand high temperature 155℃.
．Bearing: high-precision,long-life and low noise ball bearing.
．Motor: Impedance protection.
Operating temperature：
ball bearing:-30℃ to + 75℃ 30%-85% RH
sleeve bearing:-10℃ to + 70℃ 30%-85% RH

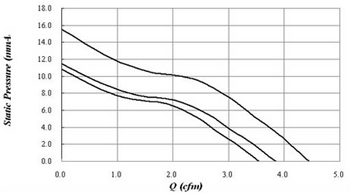

Specifications:
Model No. | Voltage | Operating Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | ||
V | V | A | W | RPM | M³/Min | CFM | mmH2O | inH2O | dB-A | |
KFL601505L | 5 | 3.6~6.8 | 0.16 | 0.80 | 3500 | 0.10 | 3.55 | 10.80 | 0.43 | 33 |
KFL601512L | 12 | 6.0~13.5 | 0.13 | 1.56 | ||||||
KFL601512M | 12 | 6.0~13.5 | 0.20 | 2.40 | 4000 | 0.11 | 3.85 | 11.50 | 0.45 | 38 |
KFL601524M | 24 | 18~26.5 | 0.12 | 2.88 | ||||||
KFL601512H | 12 | 6.0~13.5 | 0.28 | 3.36 | 4500 | 0.12 | 4.45 | 15.53 | 0.61 | 40 |
KFL601524H | 24 | 18~26.5 | 0.15 | 3.60 | ||||||
|  |
